專注環保設備制造19年

致力于固體廢物再生資源設備研發與設計制造


電子元件拆解機


適用范圍:各種報廢的家電設備電路板的基板與電子元件的拆解分離。


13690523395
產品參數 PRODUCTS PARAMETER

適用范圍:

Scope of application:

?

各種報廢的家電設備電路板的基板與電子元件的拆解分離。

Dismantle and separate substrates and electronic components of circuit boards of a variety of discarded household appliances.

?

結構特點:

Structural feature:

?

1.電路板電子元件刮板機:由脫錫爐、自動拆解機、自動抽塵及收塵系統、輸送平臺、拆解室、電控部分組成,設備自動化程度高,代替了人工拆解,縮短了拆解時間,并且占地面積小等特點。

1. Circuit board electronic component scraper conveyor: it is composed of the tin removal furnace, automatic dismantling machine, automatic dust exhaust and dust collection system, conveyor platform, dismantling room and electric control part, a high degree of automation of the equipment, replace manual dismantling, shorten the time of dismantling, and cover a small area, etc.

?

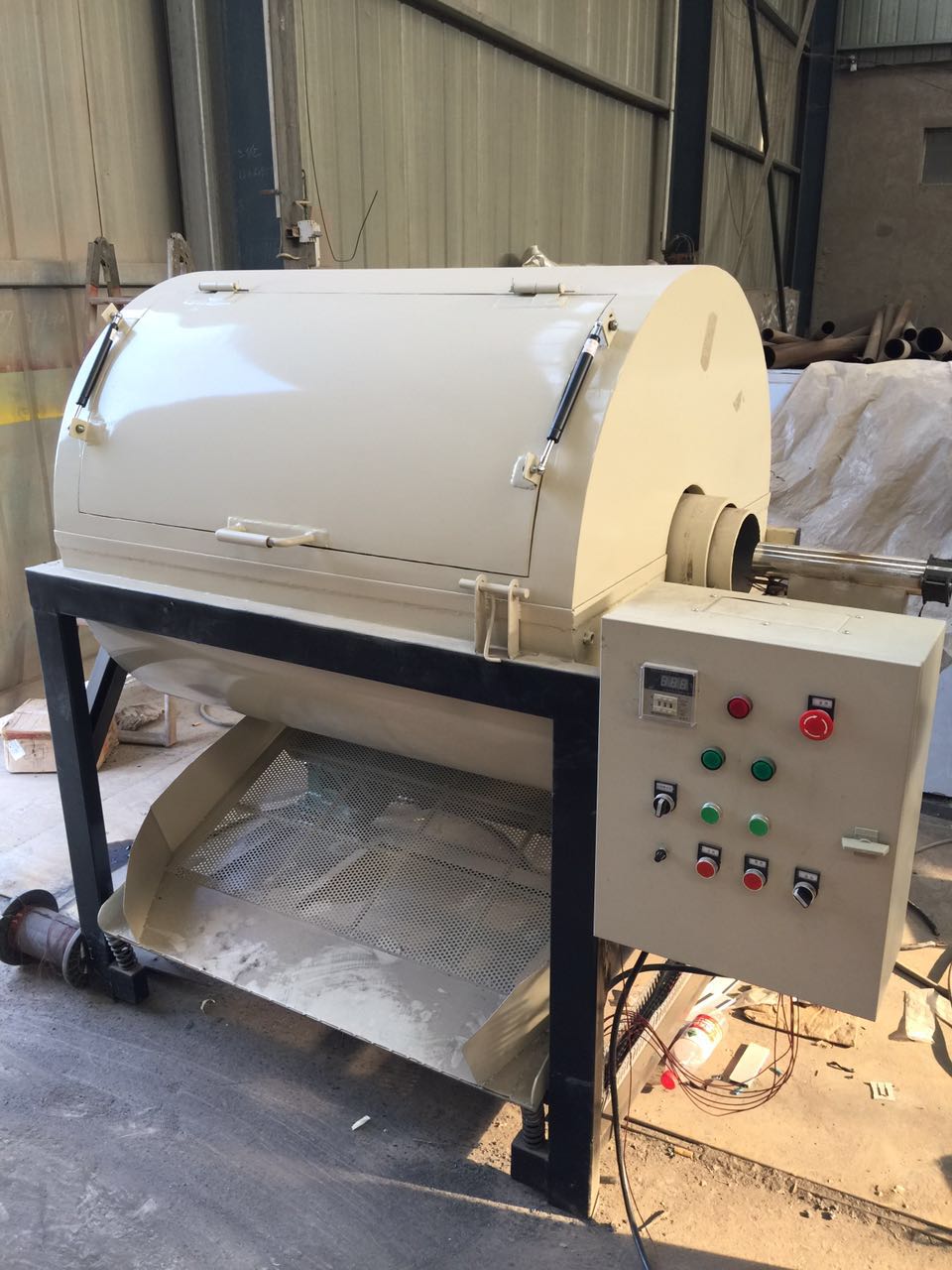

2.電路板高溫電子元件拆解機:電路板高溫拆解機內筒采用六毫米厚的45號防滑鋼板外壁采用保溫棉保溫以防溫度流失及相對應的生產技術;安全可靠,性能穩定,經耐用等特點,采用自動溫控、強制送風、熄火自燃控制的自動化加溫裝置,設定一次溫度自動記憶保存。是電子電路板行業生產領域不可缺少的理想工具。

2. Circuit board high temperature electronic component dismantling machine: the inner tank of the circuit board high temperature dismantling machine uses the 6mm-thick No. 45 anti-skid steel plate, and the outer wall is insulated with the insulating cotton to prevent the loss of temperature and the corresponding production technology; safe and reliable, stable performance, durable and other characteristics, use the automatic heating device of automatic temperature control, forced air supply and flameout self-ignition control, and set up the automatic memory preservation of temperature per time. It is an indispensable ideal tool in the production area of the electronic circuit board industry.?


表格參數Table?parameters:

名稱 Designation 型號 Model 功率(kw) Power (kw) 外觀尺寸(mm) External dimension (mm) 數量(臺) Quantity (set) 重量(kg) Weight (kg)
脫錫爐 Tin removal furnace SY-600 3.2 650*450*750 2 85
自動拆解機 Automatic dismantling machine SY-750 1.5 6500*1100*1700 1 1250
型號 Model 溫度范圍(度) Range of temperature (tJ) 轉速(r min) Speed (rmin) 功率(kw) Power (kw) 外觀尺寸(mm) External dimension (mm) 重量(kg) Weight (kg)
SY-80-90 25-300 5-60 3.75 1680*980*1420 585
SY-90-110 25-300 5-60 4.75 1880*1080*1580 870
